Casa Elite Plus Low

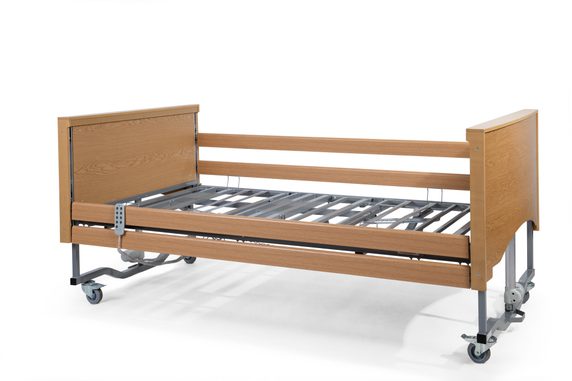

The CASA Elite Plus Bariatric Low Bed reaches a platform height of 23.5cm, reducing the risk of injury from patient falls. It is intended for use in community and residential care environments, offering an ideal balance of safety, functionality and aesthetic appeal for plus size patients.The Casa Elite Plus Community Bariatric Beds are available with covered or uncovered ends.

Developed in collaboration with our bed experts in Halifax, West Yorkshire, this four-section electrical profiling bed features adjustable head, foot and knee sections to support effective care delivery. It provides enhanced clinical, safety and comfort benefits for both patients and carers, helping to reduce complications associated with immobility.


Key Features

  • Lowest platform height of 23cm
  • Durable slatted platform
  • Reverse trendelenberg
  • Auto contour profiling

   Platform Height (Min – Max) 23.5cm-66.5cm

   Platform Length 203cm

   Platform Width 120cm

   User Weight Capacity 320kg (50.4st)

Product Details

Technical Specifications

Explore detailed specifications and key information about this product, including dimensions, performance, and essential features—helping you choose the right mobility solution with confidence.

Description

• Slatted Platform allows for ease of cleaning, improved infection control and durability

• Lower Leg Section Ratchets enable the user’s calf to remain elevated

• Choice between standard 9 button handset or optional 10 button handset for Trendelenburg positioning

• Auto Contour – A pre-programmed profiling function that raises and lowers the backrest and knee break simultaneously

• Auto Regression – As the backrest rises (0°–70°), the base slides slightly backward to increase space in the pelvic area

• Reverse Trendelenberg – Provides a foot-down tilt of up to 12°, elevating the head end of the bed.

• Cardiac Chair Position – Creates a semi-seated, chair-like posture within the bed, combining the Auto Contour with optional Reverse Trendelenburg tilt

• Lower Leg Elevation – The CASA Elite Plus Bariatric Bed includes a ratchet mechanism to manually adjust the leg and calf section.

Additional information

Options Available

Uncovered Ends in Light Oak – CASA/PLUS/LOW/UC/LOAK, Uncovered Ends in Beech with Mushroom Headboard – CASA/PLUS/LOW/UC/BEECH/MUSH, Covered Ends in Light Oak – CASA/PLUS/LOW/C/LOAK, Covered Ends in Beech with Mushroom Headboard – CASA/PLUS/LOW/C/BEECH/MUSH, Covered Ends in Beech – CASA/PLUS/LOW/C/BECH, Uncovered Ends in Beech – CASA/PLUS/LOW/UC/BECH

Product Specifications

Spec type CASA/PLUS/LOW/UC/LOAK CASA/PLUS/LOW/UC/BEECH/MUSH CASA/PLUS/LOW/UC/BECH CASA/PLUS/LOW/C/LOAK CASA/PLUS/LOW/C/BEECH/MUSH CASA/PLUS/LOW/C/BECH
Width 132cm 132cm 132cm 134.5cm 134.5cm 134.5cm
Length 221.5cm 221.5cm 221.5cm 221.5cm 221.5cm 221.5cm
Reverse Trendelenburg 0-12° 0-12° 0-12° 0-12° 0-12° 0-12°
Trendelenburg 0-12° 0-12° 0-12° 0-12° 0-12° 0-12°
Platform Height (Min – Max) 23.5cm-66.5cm 23.5cm-66.5cm 23.5cm-66.5cm 23.5cm-66.5cm 23.5cm-66.5cm 23.5cm-66.5cm
Platform Length 203cm 203cm 203cm 203cm 203cm 203cm
Platform Width 120cm 120cm 120cm 120cm 120cm 120cm
Safe Working Load 372kg (58.6st) 372kg (58.6st) 372kg (58.6st) 372kg (58.6st) 372kg (58.6st) 372kg (58.6st)
User Weight Capacity 320kg (50.4st) 320kg (50.4st) 320kg (50.4st) 320kg (50.4st) 320kg (50.4st) 320kg (50.4st)
Leg Section Tilt 25° 25° 25° 25° 25° 25°
Calf Section Tilt 21° 21° 21° 21° 21° 21°
Backrest Tilt 70° 70° 70° 70° 70° 70°

Downloads

User Manual – PDF Download
Sales Brochure – PDF Download
