R82 Toucan

A standing frame that supports children in an upright or prone position. Designed for comfort and versatility, it facilitates easy transfers and promotes participation in daily activities by providing tailored support for a wide range of needs.


Key Features

  • Prepared for accessories
  • Angle adjustable centre bar
  • Handle with lock
  • Castors with locks

Product Details

Technical Specifications

Explore detailed specifications and key information about this product, including dimensions, performance, and essential features—helping you choose the right mobility solution with confidence.

Description

The Toucan's design features soft curves and vibrant colours, making it an inviting choice for therapy or home use. The Toucan is designed to help children stand with confidence, participate more actively and support their ongoing development. The open frame facilitates easy sit-to-stand transfers. Its low step-in height encourages independence by allowing effortless access. This adaptable standing frame supports optimal positioning, fostering social interaction and development for children with varying needs.

Prepared for accessories

Prepared for accessories

All sizes of Toucan can be equipped with all sizes of accessories. The Toucan is designed with slots in the centre bar for easy and simple mounting.

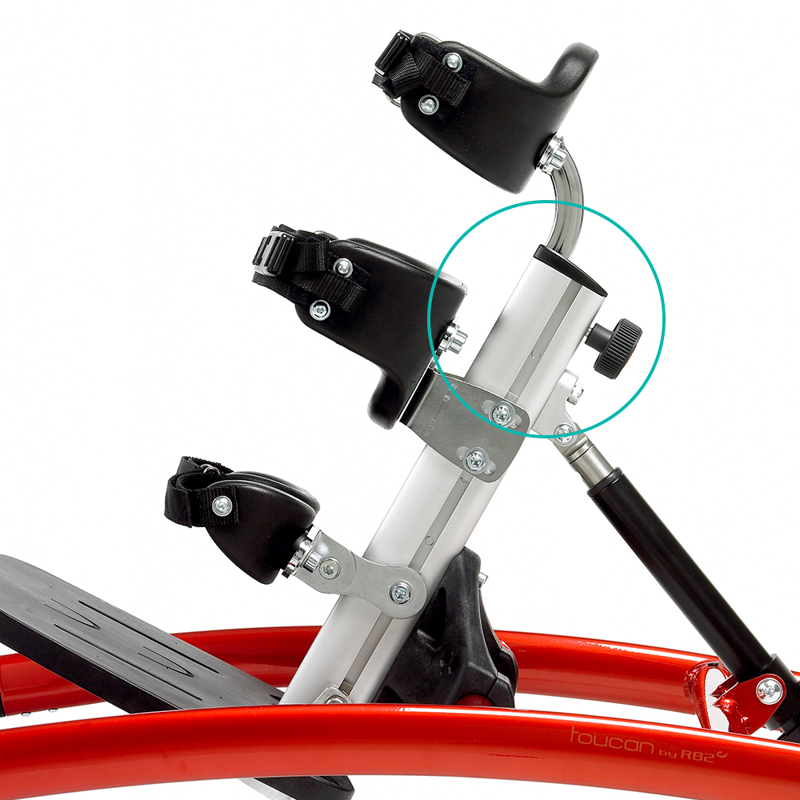

Angle adjustable centre bar

Angle adjustable centre bar

The Toucan has easy and steady angle adjustment making it possible to obtain the optimum standing position.

Handle with lock

Handle with lock

The handle for angling the centre bar is equipped with a security lock. Pull out the lock whilst turning the handle to change the angle.

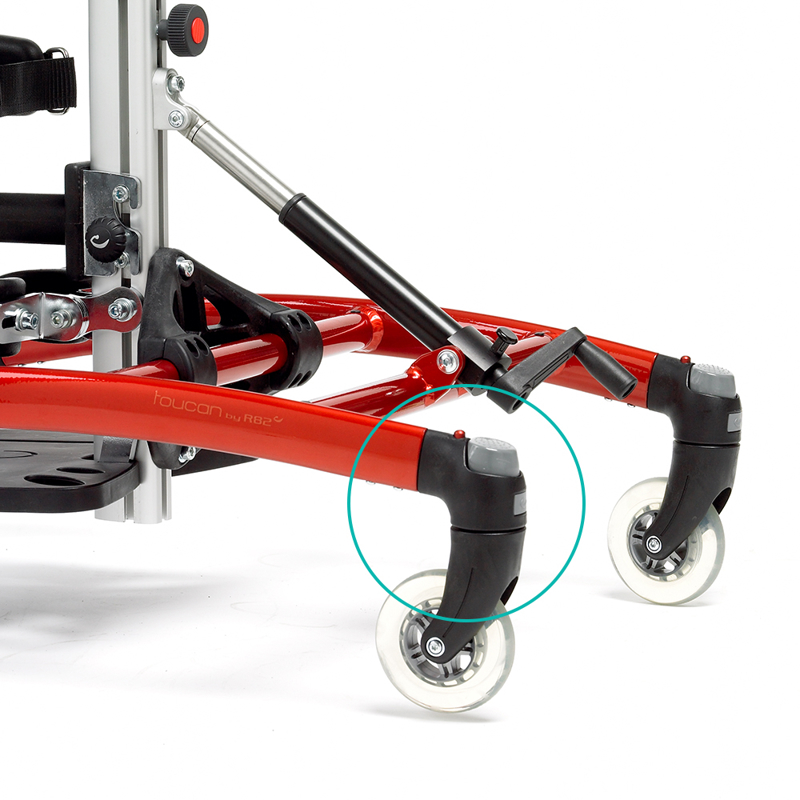

Castors with locks

Castors with locks

All four castors are equipped with locks securing the Toucan for stability. The wheels are very easy to manoeuvre, making it easy to move the Toucan around.

Product Specifications

Specification Size 1 Size 2 Size 3 Size 4 Size 5
Item number 861001 861002 861003 861004 861005
Angle, centre bar (°) 0-30 0-30 0-30 0-20 0-20
Foot plate angle (°) 15-(-10) 15-(-10) 15-(-10) 15-(-10) 15-(-10)
Height floor to foot plate (mm) 60 60 60 60 60
Length (mm) 750 880 880 1110 1110
Length, centre bar (mm) 450 500 700 800 1000
Mass device (kg) 7.5 8.5 9 10.5 10.75
Maximum rated load (kg) 39.5 50.5 61 72.5 82.75
Maximum user mass (kg) 30 40 50 60 70
Overall height (mm) 670-870 720-1010 970-1230 1040-1340 1240-1540
Overall width (mm) 560 630 630 700 700
Static stability downhill (°) 5 5 5 5 5
Static stability sideways (°) 5 5 5 5 5
Static stability uphill (°) 5 5 5 5 5
User height: floor to armpit (mm) 340-700 540-900 740-1100 910-1210 1110-1410

Downloads

User Manual – PDF Download
Spare Part List – PDF Download
Declaration of Conformity – PDF Download

Reviews

There are no reviews yet.

Be the first to review “R82 Toucan”

Additional information

Options Available

Size 1, Size 2, Size 3, Size 4, Size 5
