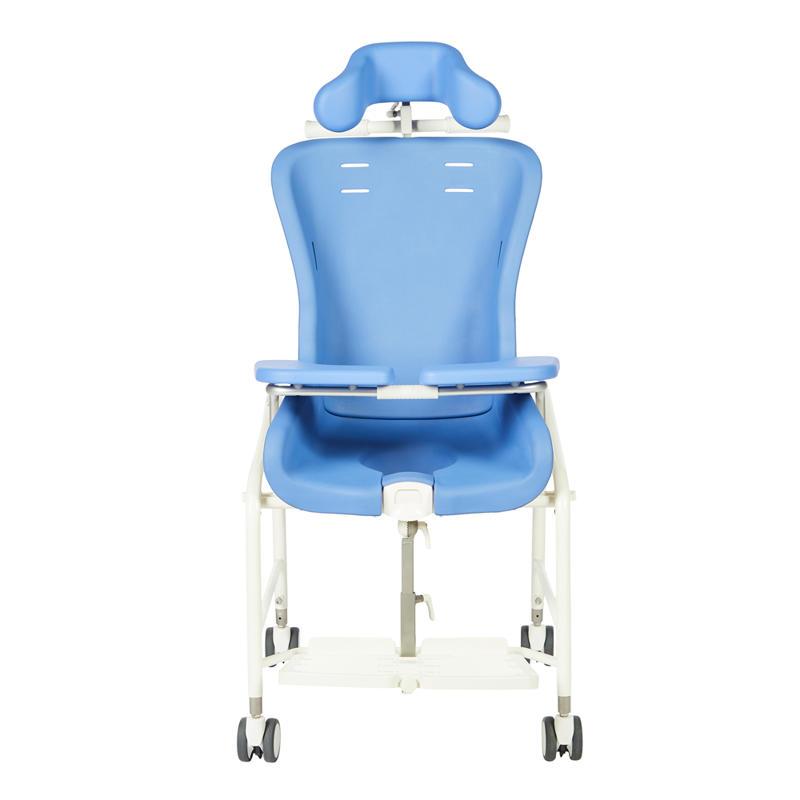

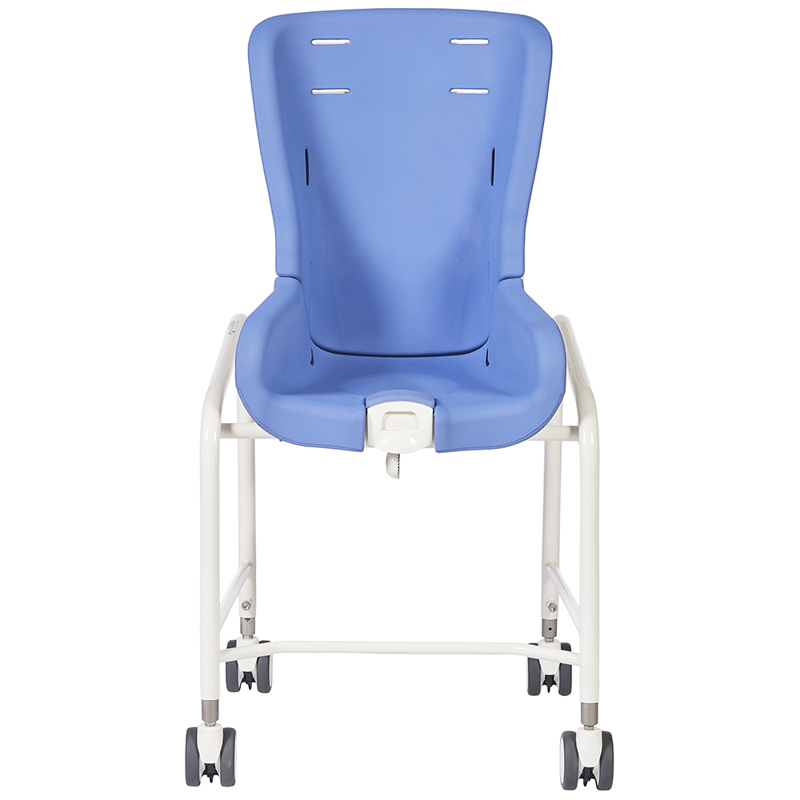

R82 Swan Curo

A toilet and bath chair developed for children and youngsters with special needs. Its minimalistic design and soft inlay ensure optimal comfort and support, while the adjustable frame facilitates easy caregiving during daily hygiene routines.


Key Features

  • Versatile Functionality
  • Everyday Convenience
  • Comfort and Support
  • Individual Adjustment

Product Details

Technical Specifications

Explore detailed specifications and key information about this product, including dimensions, performance, and essential features—helping you choose the right mobility solution with confidence.

Description

The Swan Curo ensures great comfort and easy caregiving. Its minimalistic design and small footprint make it suitable for various homes, while the perfectly shaped shell and soft PU inlay provide optimal comfort for the child. Smooth surfaces allow for easy cleaning. The tilt mechanism and height-adjustable frame simplify adjustments during use, accommodating a wide range of toilets and making daily hygiene routines more efficient and dignified for both the child and caregiver.

Versatile Functionality

Versatile Functionality

A multifaceted toilet and bath chair suitable for various daily self-care and wellness activities. This design enables children to remain actively engaged, promoting quality of life while reducing transfer needs and caregiver physical strain.

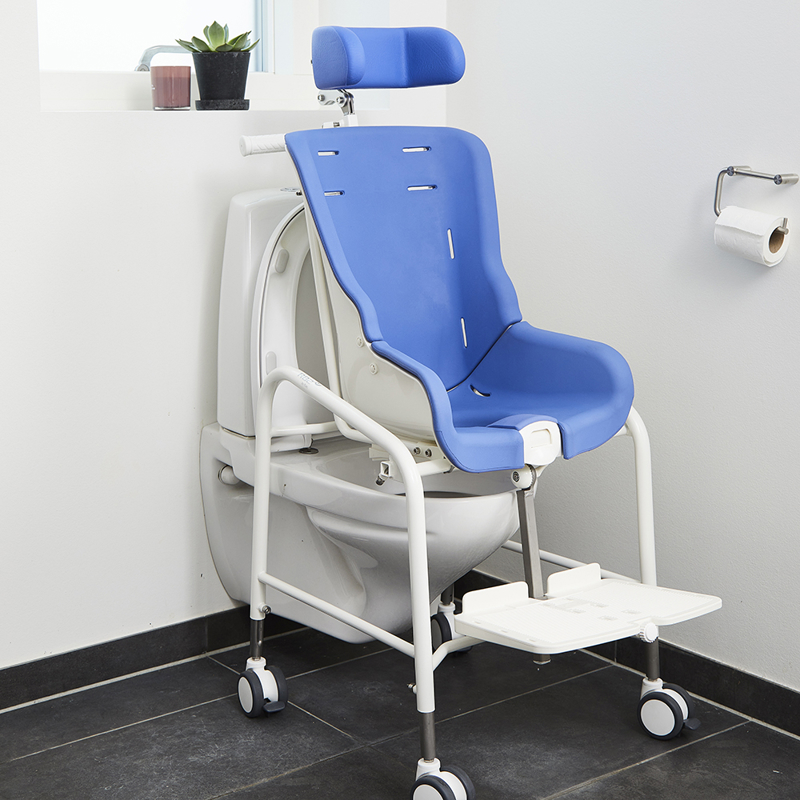

Everyday Convenience

Everyday Convenience

A minimalist frame with compact footprint that adapts well to various home and bathroom environments. The straightforward design ensures user-friendliness and lightweight handling for caregivers, with smooth surfaces facilitating routine cleaning.

Comfort and Support

Comfort and Support

The carefully sculpted shell paired with soft polyurethane inlay delivers superior seating comfort. The durable, easily-removable padding combines with optional head supports, vests, and belts to ensure comprehensive user support.

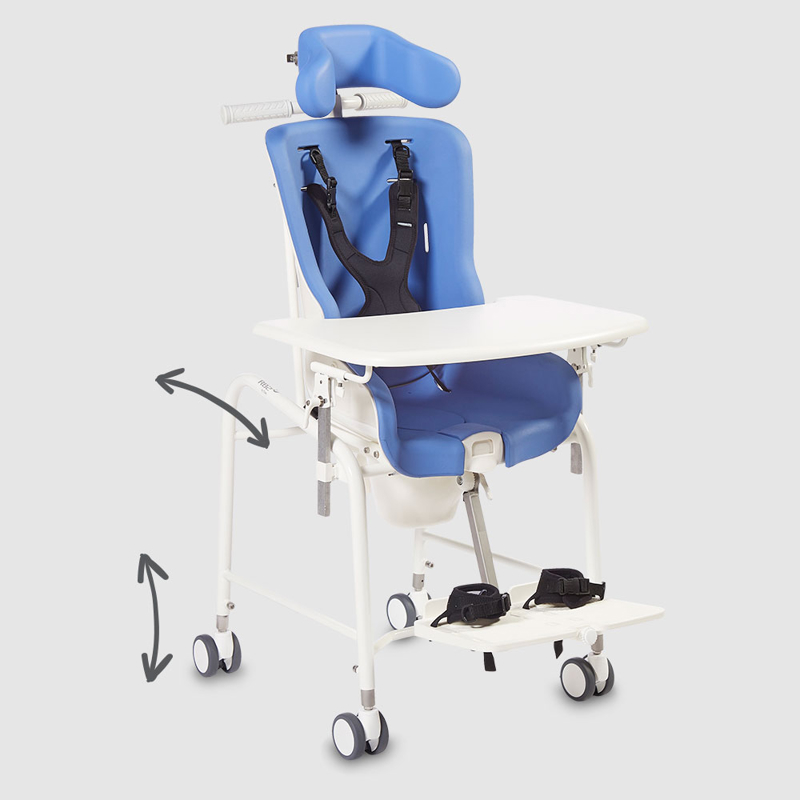

Individual Adjustment

Individual Adjustment

Tilt positioning uses gas spring assistance, while height and angle-adjustable foot support accommodates individual needs. The height-adjustable frame enables optimal transfer positioning relative to toilets and caregiver ergonomics.

Product Specifications

Specification Size 1 (no castors) Size 1 Size 2 Size 3 Size 4
Item number 87060 87061 87062 87063 87064
Aperture W × D (mm) 125×185 125×185 150×220 180×280 180×330
Aperture with inlay W × D (mm) 100×175 100×175 125×210 155×270 155×320
Back width, bottom (mm) 210 210 250 315 400
Back width, top (mm) 270 270 350 425 490
Backrest height (mm) 380 380 470 525 600
Effective seat depth (mm) 265 265 310 400 450
Effective seat width (mm) 220 220 260 320 410
Length with castors at 0° tilt (mm) 495/555 625/645 680/715 680/715
Length without castors at 0° tilt (mm) 400/425
Mass with castors (kg) 8.5 10.5 11.75 12.75
Mass without castors (kg) 7.5
Maximum rated load with castors (kg) 46 73 99 125
Maximum rated load without castors (kg) 45
Maximum user mass (kg) 35 35 60 85 110
Overall height with castors (mm) 760-920 960-1120 990-1150 1060-1220
Overall height without castors (mm) 670-830
Overall width with castors (mm) 500 530 580 655
Overall width without castors (mm) 460
Pelvis width (mm) 240 240 275 340 420
Seat plane angle (°) 0-20 0-20 0-20 0-20 0-18.5
Seat surface height at front edge, castors (mm) 380-540 480-640 470-630 465-625
Seat surface height at front edge, no castors (mm) 290-450
Seat width front (mm) 320 320 355 425 475

Downloads

User Manual – PDF Download
Spare Part List – PDF Download
Declaration of Conformity – PDF Download

Reviews

There are no reviews yet.

Be the first to review “R82 Swan Curo”

Additional information

Options Available

Size 1 without castors, Size 1, Size 2, Size 3, Size 4
