R82 Orca/Penguin

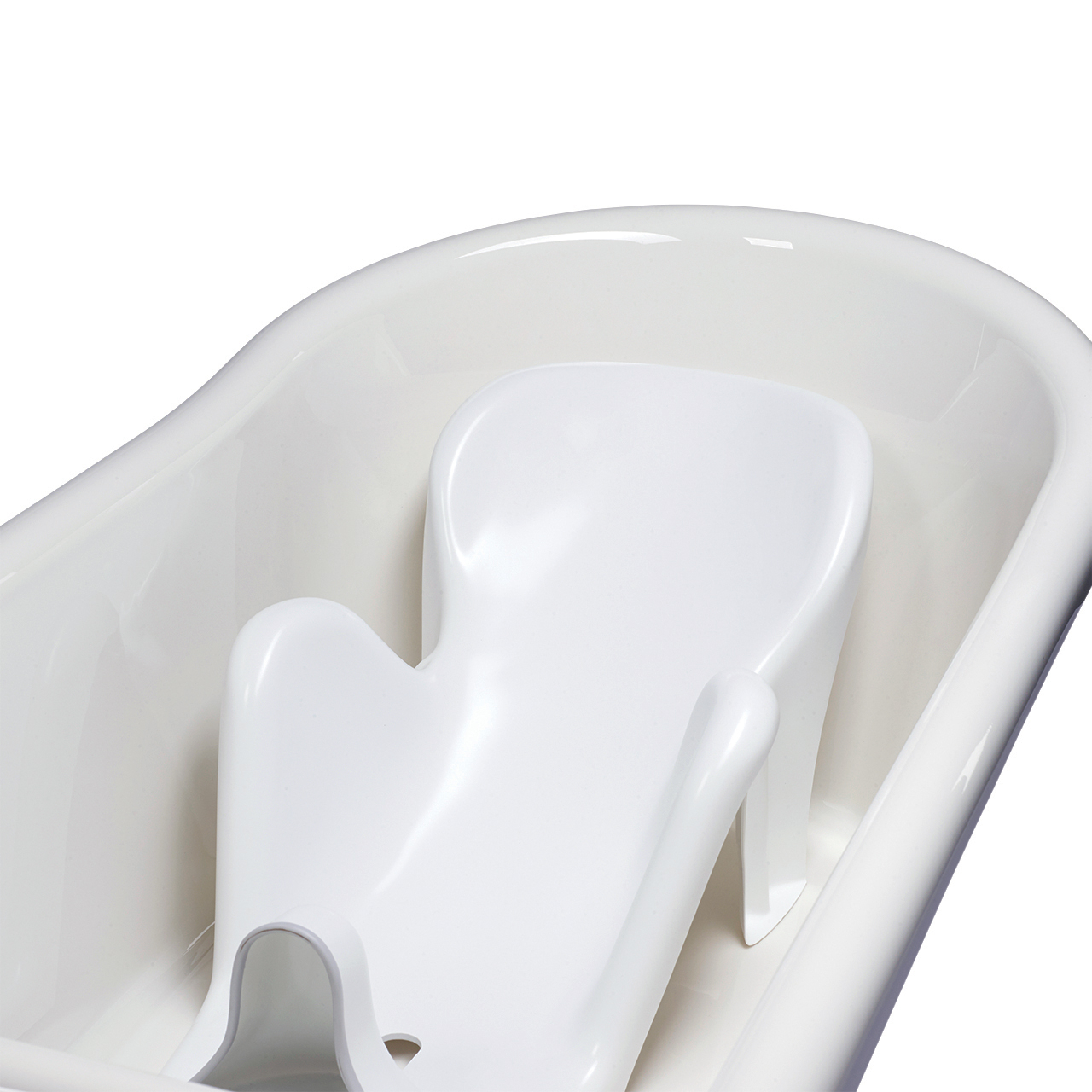

The Penguin can be used in the Orca bathtub, but fits ordinary bathtubs as well. With its suction cups, the Penguin sits firmly on most smooth surfaces.

Product Details

Technical Specifications

Explore detailed specifications and key information about this product, including dimensions, performance, and essential features—helping you choose the right mobility solution with confidence.

Description

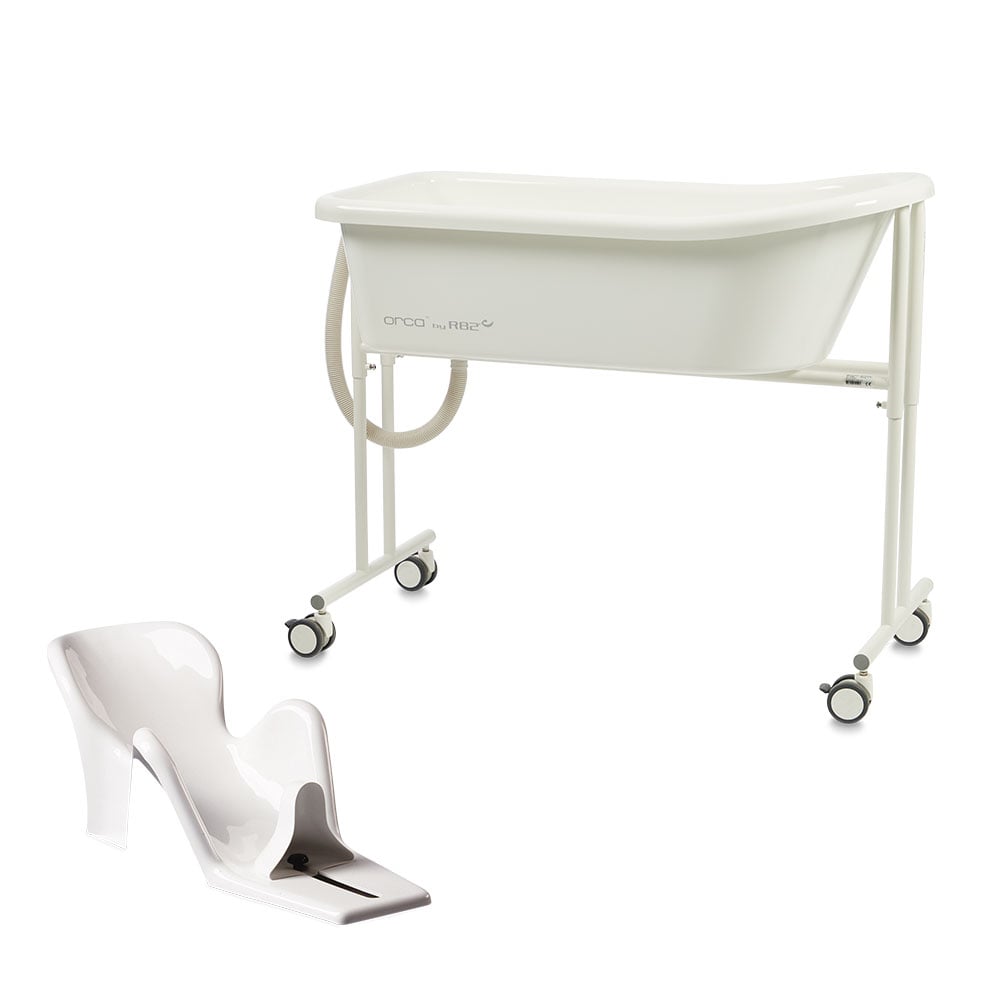

A spacious bathtub and a supportive bathing seat designed to make bath time comfortable and enjoyable. The Orca provides space, while the Penguin offers support for the head and trunk, ensuring a safe and relaxing experience for children during bathing routines.

Excellent working conditions

Excellent working conditions

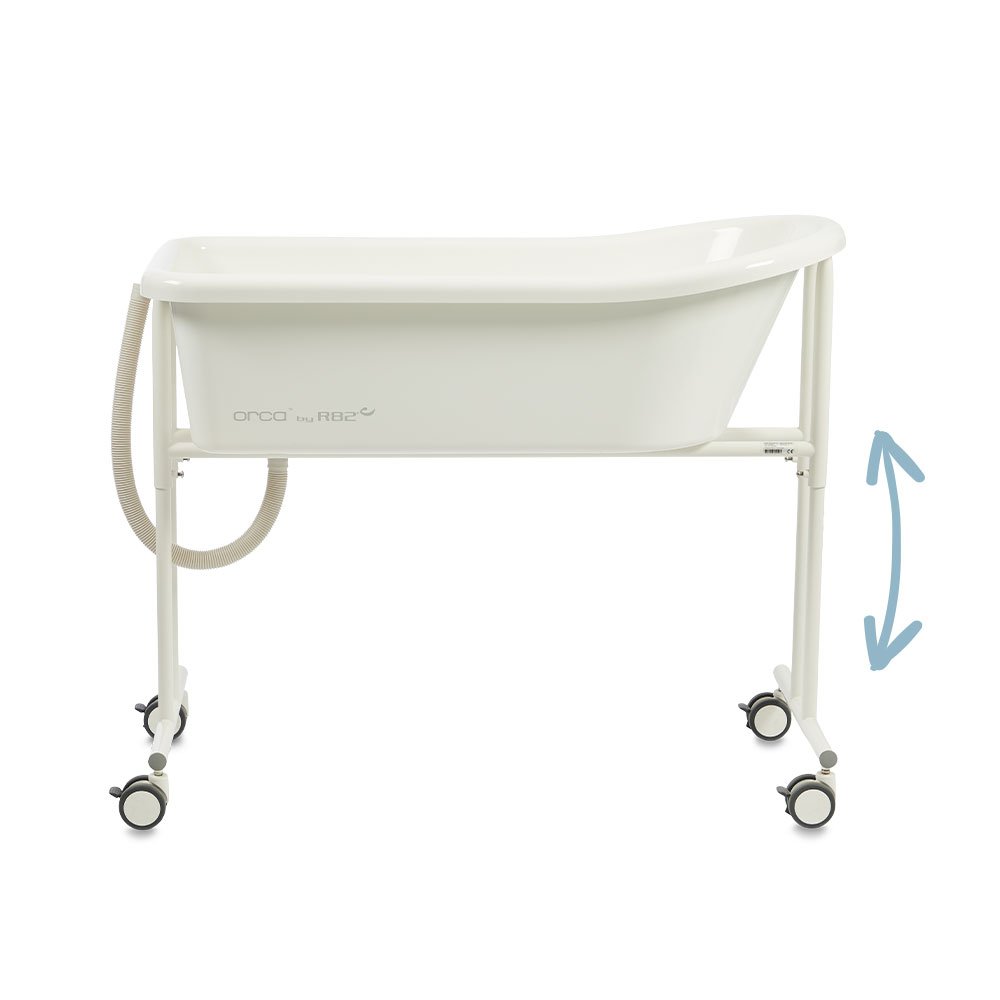

The height adjustable frame allows for both standing and sitting care. Free space on the side makes it possible to get close to the child providing optimum comfort. Four smooth running wheels makes it easy to move the bathtub around – even with water in it.

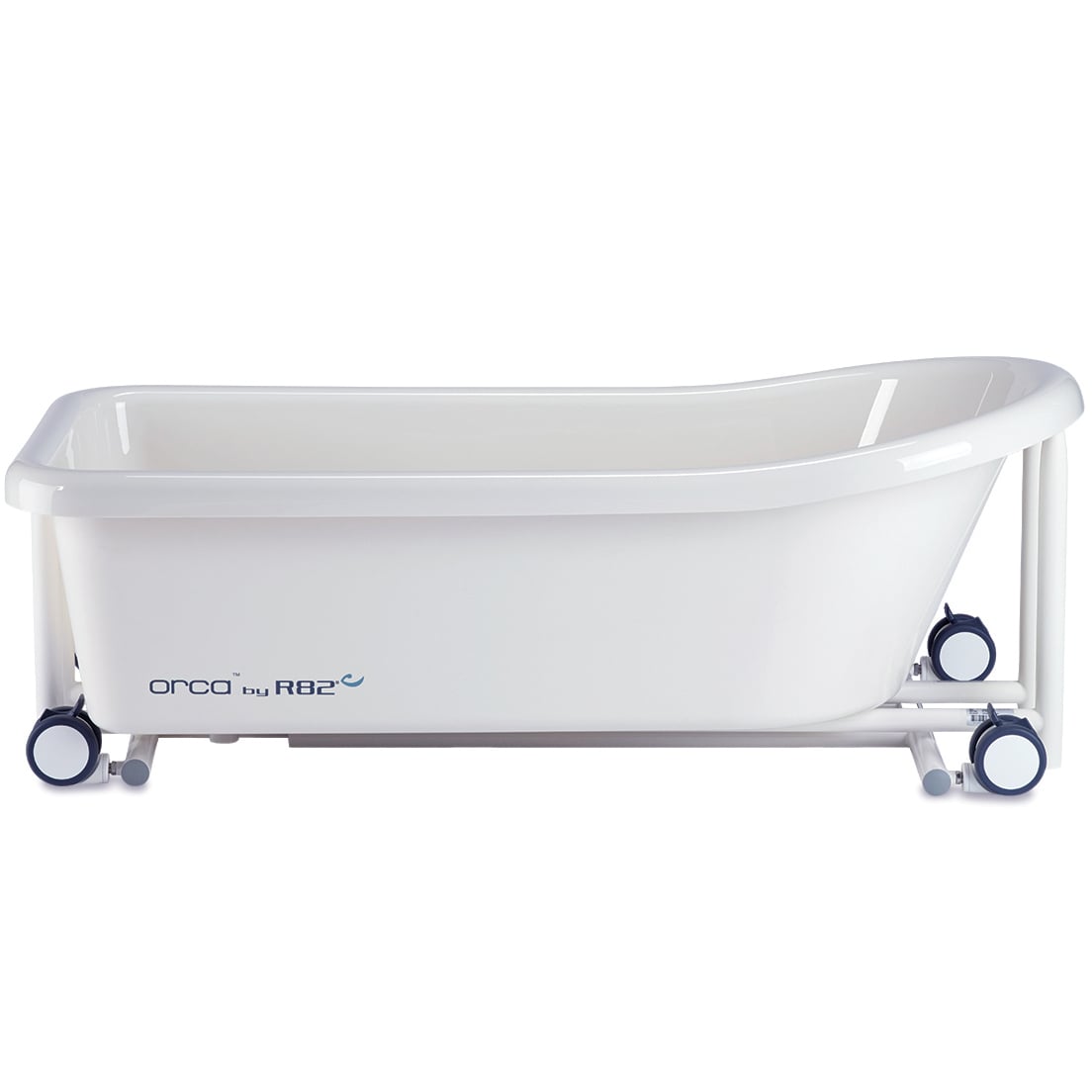

Easy to handle

Easy to handle

The frame can be taken apart to minimise space for storage or transportation. The smooth and hygienic surface makes it very easy to clean.

Freedom of movement

Freedom of movement

Mount a bathing seat in the Orca for added trunk support and freedom of movement. Both the small Flamingo and the Penguin bathing seat fits perfectly in the bathtub.

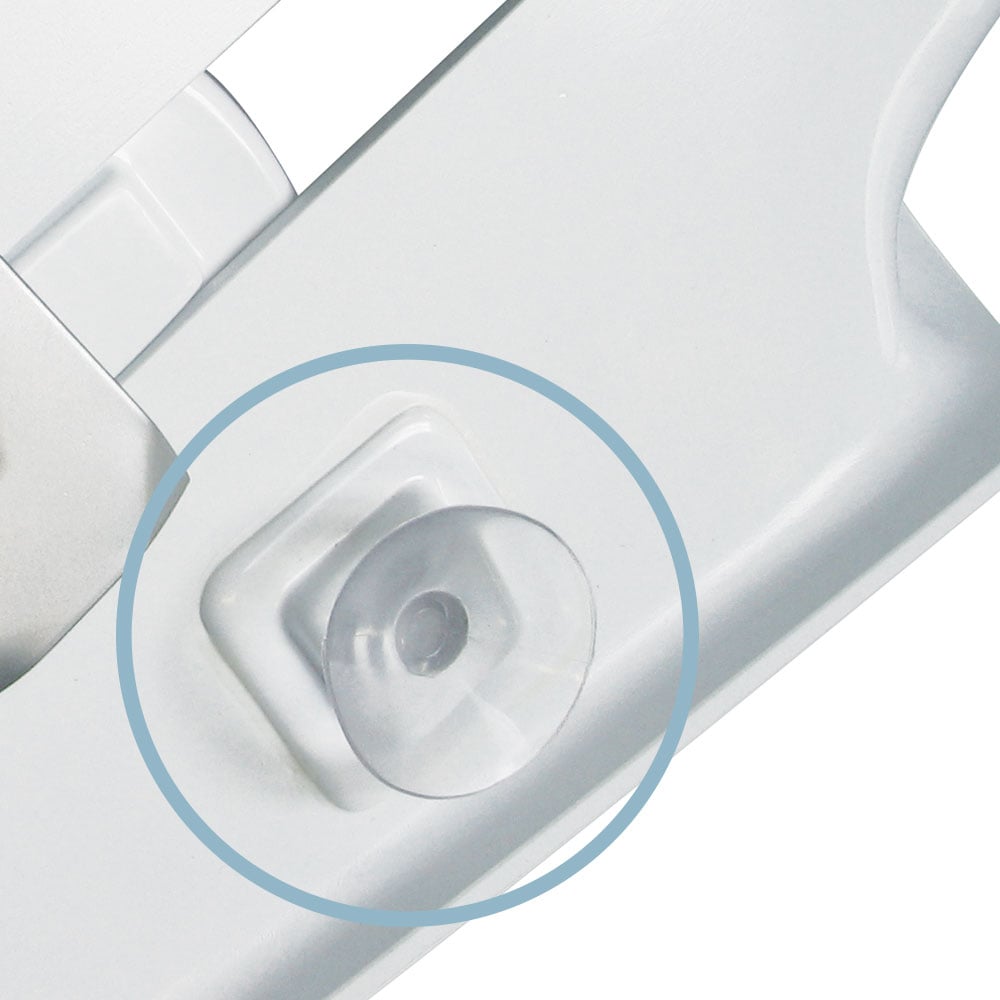

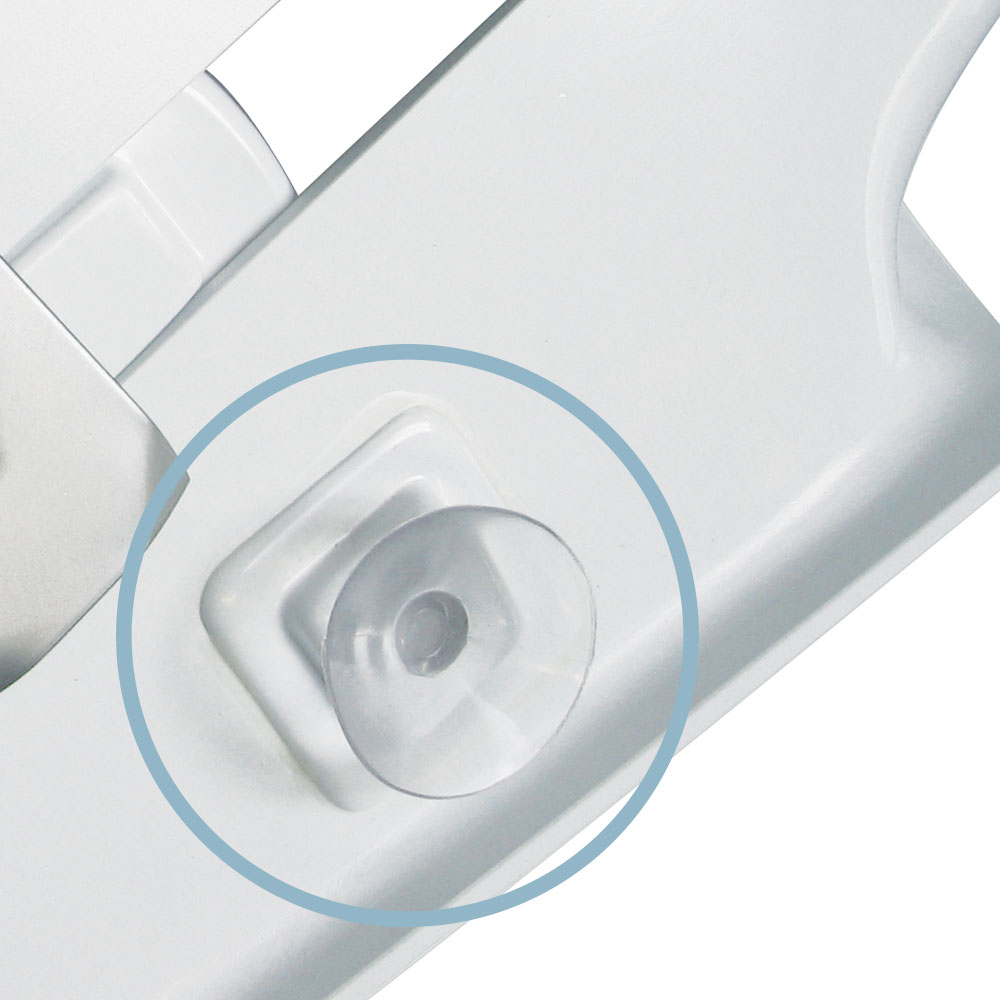

Penguin - suction cups

Penguin – suction cups

Secures the Penguin in the bathtub.

Product Specifications

Specification Orca Penguin
Item number 87550 87702
Bathtub height, inside (mm) 290
Bathtub length, inside, bottom (mm) 860
Bathtub length, inside, top (mm) 1030
Bathtub width, inside, bottom (mm) 400
Bathtub width, inside, top (mm) 470
Frame height (mm) 940-1150
Height (mm) 260
Length (mm) 1110 800
Length, abduction block to top (mm) 560-720
Mass device (kg) 17 1.35
Max load (kg) 120
Maximum rated load (kg) 69 23.35
Maximum user mass (kg) 50 20
Minimum turning diameter (mm) 675
Overall height (mm) 940-1150 260
Overall width (mm) 550 330
Required width of right angled corridor (mm) 1350
Total mass (kg) 16

Downloads

EC Declaration of conformity EU Declaration of Conformity for Accessories – PDF Download
EC Declaration of conformity EU Declaration of Conformity Orca – PDF Download
EC Declaration of conformity EU Declaration of Conformity Penguin – PDF Download
Pre purchase guide Orca – Presales Information – PDF Download
Pre purchase guide Penguin – Presales Information – PDF Download
Spare Parts List – PDF Download
User manual M1330 Penguin – PDF Download
User manual M1340 Orca – PDF Download

Reviews

There are no reviews yet.

Be the first to review “R82 Orca/Penguin”

Additional information

Options Available

Penguin seat, Flamingo Curo, Flamingo seat
