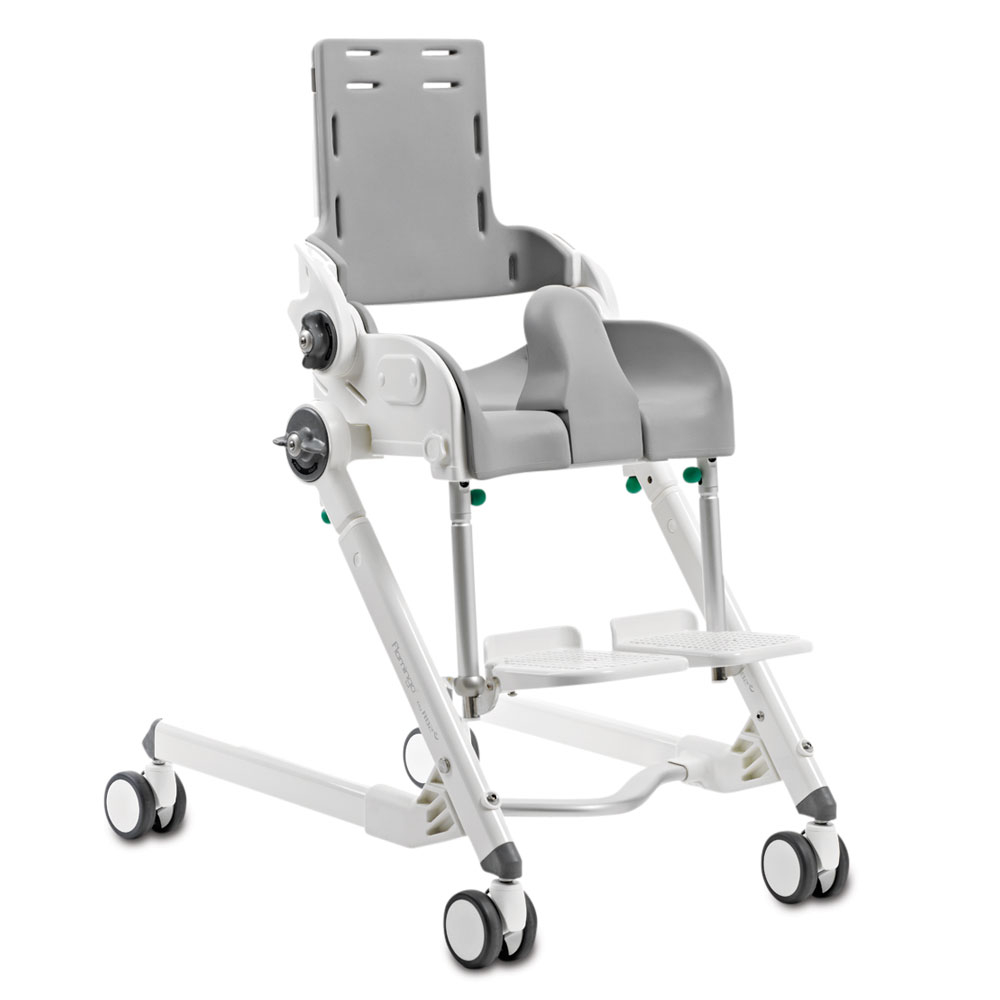

R82 Flamingo

Description

Designed to support children with special needs, this toileting and bathing chair brings comfort, dignity and stability to everyday hygiene routines. It adjusts to individual positioning needs, helping children feel safe and relaxed while making caregiving smoother and more supportive.

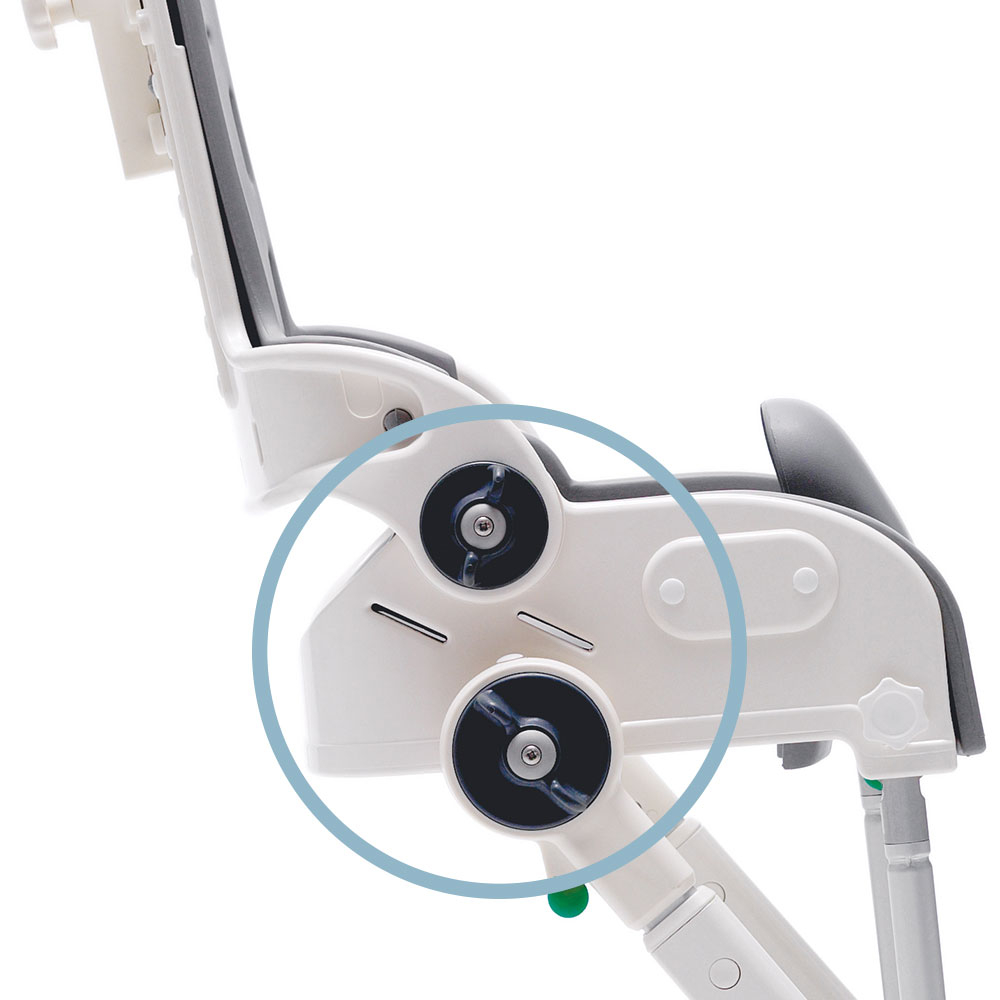

Tilt in space and back recline

Tilts and reclines for the child’s comfort and positioning.

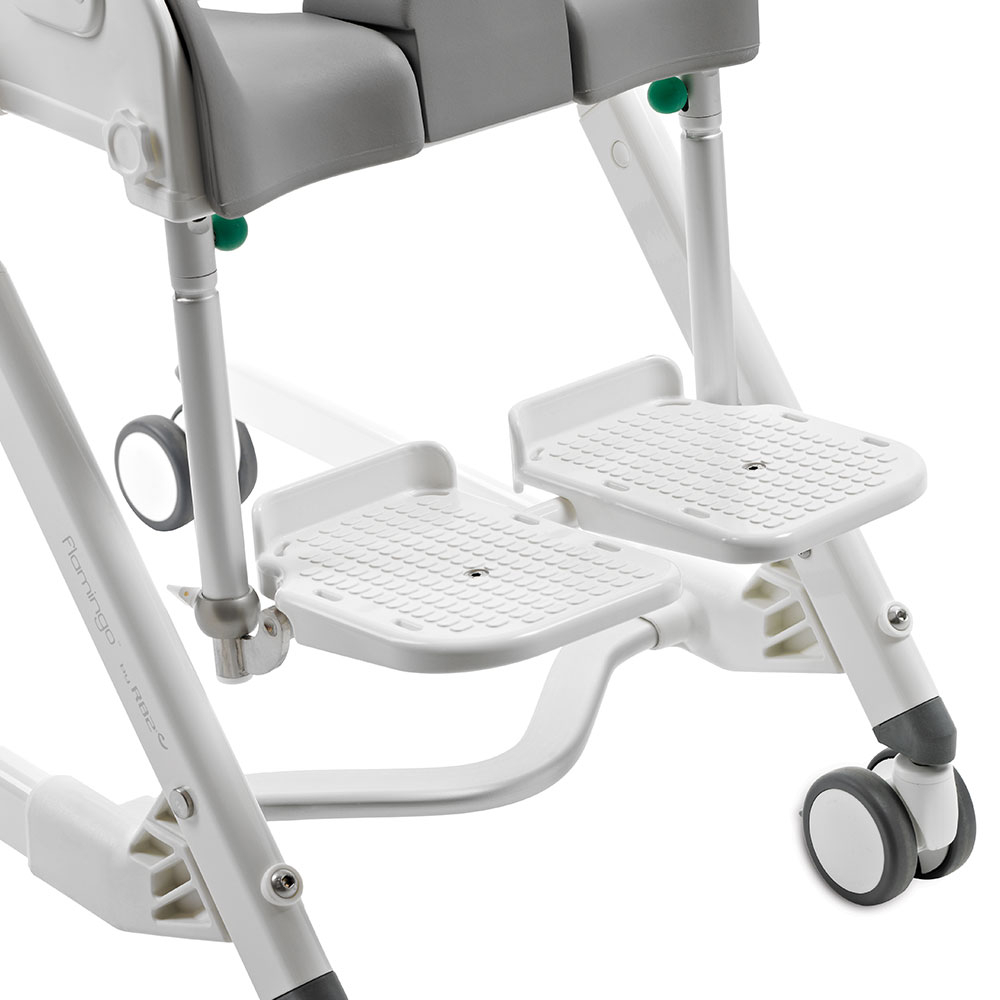

Adjustable foot supports

Adjust to ensure the best possible positioning and support.

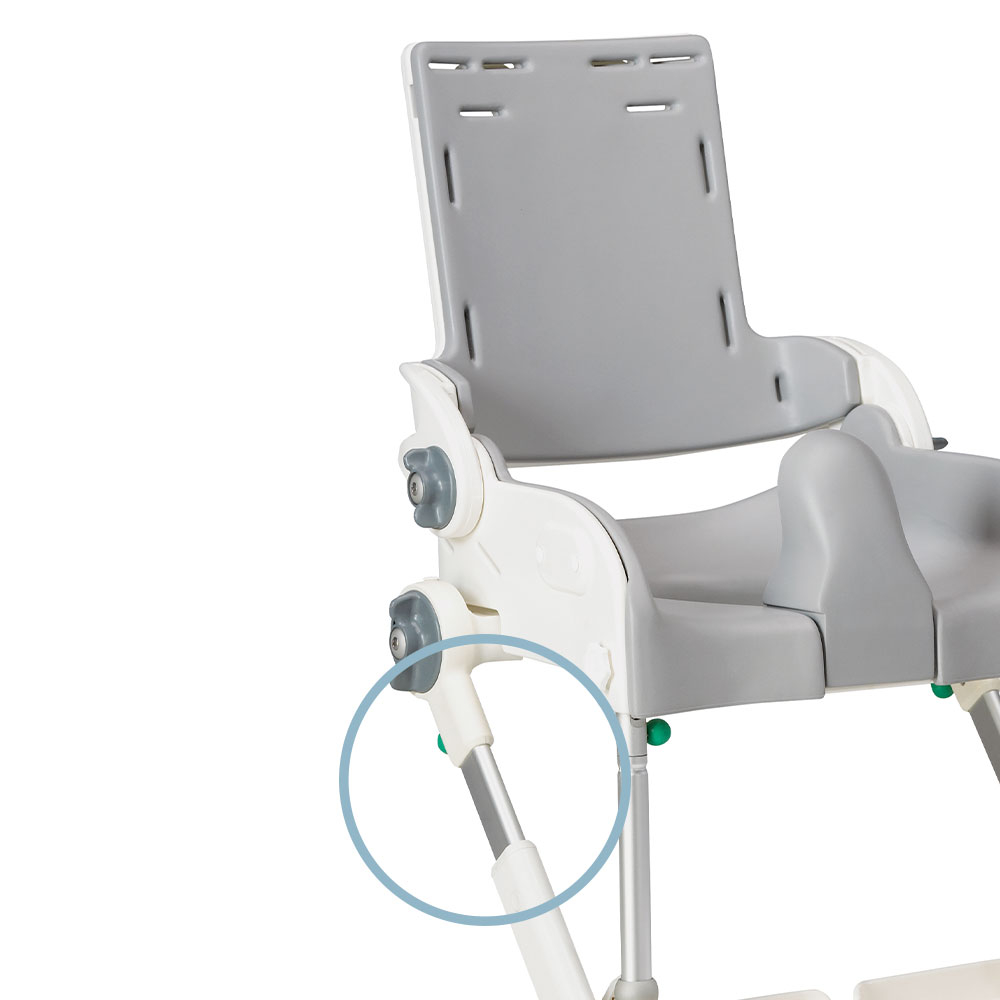

Height adjustable frame

Adjusts to fit the height of the caregiver and the toilet.

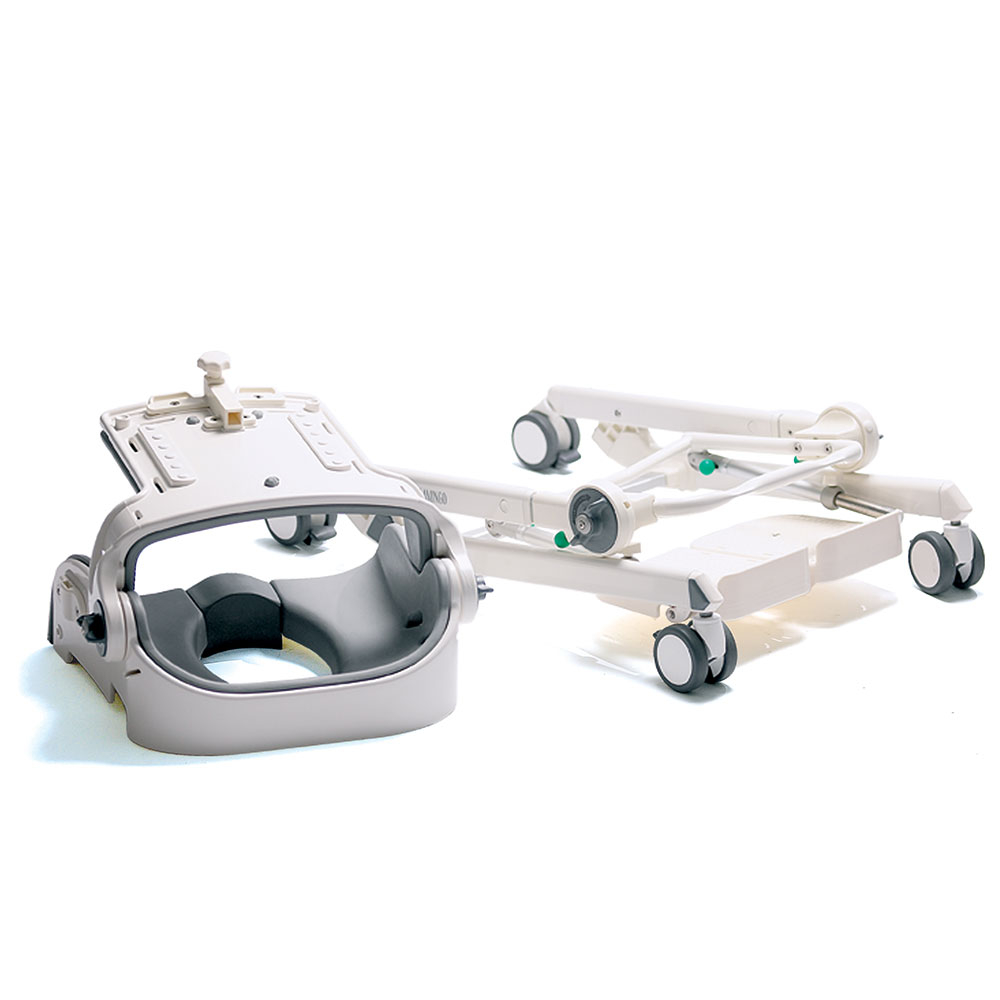

Foldable frame

Folds for storage or transportation.

Product Specifications

Specification	Flamingo size 1	Flamingo Size 2	Flamingo Size 3	Flamingo Size 4	Flamingo seat size 1	Flamingo seat size 2	Flamingo seat size 3	Flamingo seat size 4
Item number	880001-xxx	880002-xxx	880003-xxx	880004-xxx	880101	880102	880103	880104
Back width, top of backrest (mm)	200	220	260	280	–	–	–	–
Backrest angle (°)	30	30	30	30	–	–	–	–
Backrest height (mm)	350	380	420	470	–	–	–	–
Effective seat depth (mm)	250	290	350	400	–	–	–	–
Effective seat width (mm)	240	280	320	340	–	–	–	–
Folded height, frame (mm)	200	200	200	200	–	–	–	–
Folded length, frame (mm)	740	740	740	740	–	–	–	–
Frame length (mm)	660	660	660	660	–	–	–	–
Leg to seat surface angle (°)	90-60	90-60	90-60	90-60	–	–	–	–
Length (mm)	–	–	–	–	260	315	360	425
Lower leg length (mm)	180-260	250-350	300-400	300-400	–	–	–	–
Mass device (kg)	11	13	14	15	2.5	3	4	4.5
Maximum rated load (kg)	48	65	76	87	39.5	55	66	76.5
Maximum user mass (kg)	35	50	60	70	35	50	60	70
Overall height (mm)	860	890	930	950	–	–	–	–
Overall width (mm)	440	460	500	540	–	–	–	–
Seat plane angle (°)	(-15)-35	(-15)-35	(-15)-35	(-15)-35	–	–	–	–
Seat surface height at front edge (mm)	500-600	500-600	500-600	500-600	–	–	–	–

Downloads

EC Declaration of conformity EU Declaration of Conformity Flamingo – PDF Download
EC Declaration of conformity EU Declaration of Conformity for Accessories – PDF Download
Product Selection Guide – PDF Download
Spare Parts List – PDF Download
User manual M1047 Flamingo Seat – PDF Download
User manual M1048 Flamingo Frame – PDF Download
Assembly Instructions – PDF Download
